M50/M100

m100

M50/M100

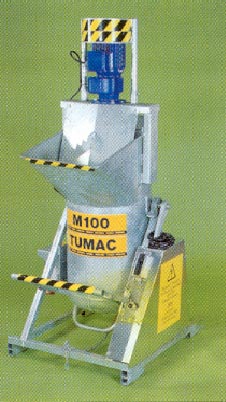

M100 – Rapid mixer is a batch mixer for 100 liters ready mixed material.
Perfect for most types of plaster, mortar, and concrete and self-leveling floor screed etc. By a high speed and the twisted wings the mixing effect is very high.  This mixer can be used separately or together with  our pumps P50-P70. A time relay guarantees the right mixing time and a pneumatic assembly make the mixer easy to empty.

Kategori: .

Produktbeskrivning

Mixers for plaster, mortar, concrete and self-leveling floor screed

Technical data

M-50 M-100
Voltage 1) 3 x 230 or 400 V 3 x 230 or 400 V
Power kW 1.5 3
Frequency Hz 1) 50 50
Fuse 16 A 16 A
Rotation speed 1) 250 250
Capacity
Volume 50 litres 100 litres
Mixing time ~ 3 min ~ 5 min
Measurement
Length x Width x Height 1050 x 750 x 1600 1155 x 880 x 1980
Tap height ~ 720 mm ~ 720 mm
Filling hight 1050 mm 1200 mm
Weight kg 81 205
Other
Tipping Manually Pneumatic
Movable by Wheel Wheel







1)       Other options available
