TUMAC Hanging stages THD
Hanging stages THD:

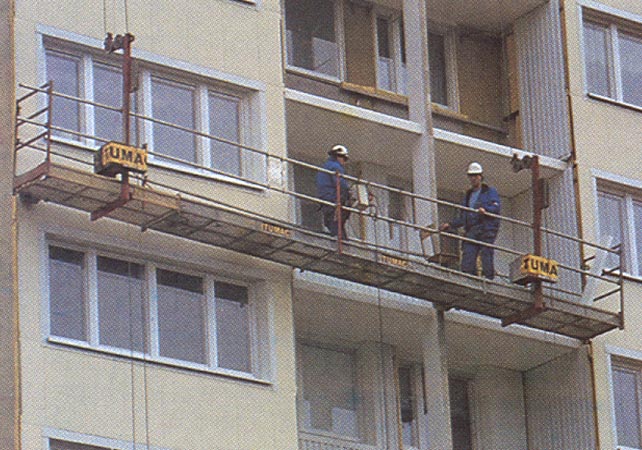

The hanging stage THD exists in two designs, THD Single and TDH Combi. The platform is made of perforated galvanized steel in different modules. The parts can easily be bolted together to desired length of stage from 1 metre upwards.
Standard for THD Single is 1, 2 and 2.6 metres.
Standard for THD Combi is 2.6, 5.3, 8, 10 and 12 metres.
The Hanging Stage can be delivered complete to the building site, which reduces the time for assembling to an absolute minimum.
TECNICAL DATA
| Type | Plattform length
m |
Max S:W:L
kg |
Weight
kg |
| 1 unit | 2,6 | 350 | 215 |
| 2,0 | 360 | 205 | |
| 1,0 | 385 | 180 | |
| 2 units | 12,0 | 550 | 545 |
| 10,0 | 600 | 490 | |
| 8, 0 | 700 | 440 | |
| 5,3 | 730 | 390 | |
| 2,6 | 800 | 330 |
