TUMAC Passenger/Materials Hoist PM500
Passenger/Material Hoist PM 500:

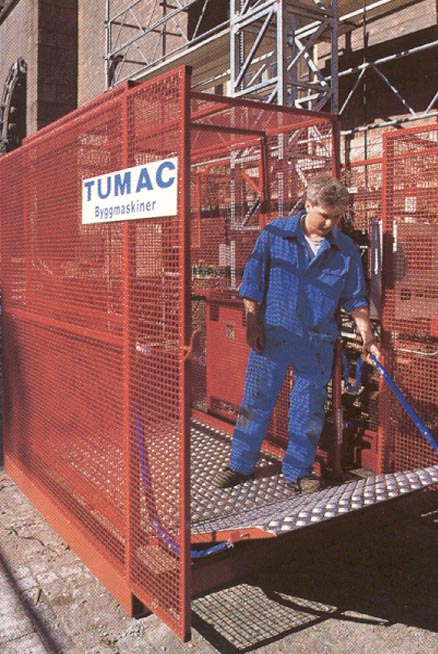

The landing, on the PM 500, is built up with a beam, in one end fasten to the mast with two clamps and in the other end in a 48 mm scaffold tubing which is build up together with the hoist. On this tubing and on the mast the landing beam is fastening. Build up the landing on the beam. Because of the slewing cage it connects very close to the landing and it is easy to load/unload the hoist.
Driving up/down is by impulse circuit. "Next stop" function is included. The electrical unit on the surrounding has a phase switch with indication for right phase sequence.
TECHNICAL DATA
| Carrying capacity | 500kg, or 6 persons |
| Lift speed | 30 m/min |
| Weight | ~560kg |
| Motor effect | 5,5 kW |
| Electrical connection | 25 Amp, 380 Volt |
| Lift height max. | 100 m |
| Montage crane | Standard |
| Mast distance | 12 m |
| Freestanding | to 9 m |
| Basket- inside width, length, height | 1100, 1570, 1990 mm |
| Outside - width, length, height | 2050, 1950, 2150 mm |
