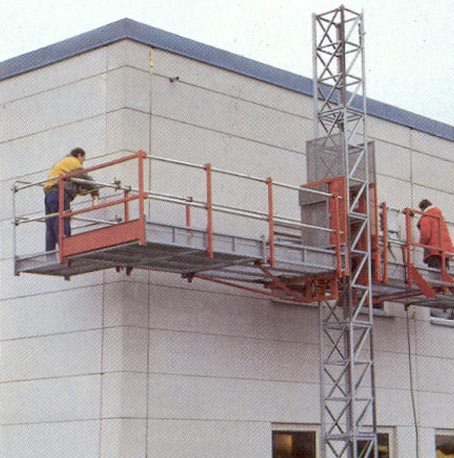

TUMAC Work platform AM 1000
Work platform AM 1000:
Tumac AM 1000 is the perfect work platform for large installations and repairjobs.
TEKNICAL DATA
| Carrying capacity | 1000kg |
| Lift speed | 6,3 m/min |
| Weight incl. 1 mast section | app. 2100kg |
| Motor effect | 2 x 1,5 kW |
| Electrical connection | 16 amp, 3 fas, 220 volt |
| Lift height max with two support points | 15 m |
| Lift height max with four support points | 19 m |
| Lift height max fixed to the building | 100 m |
| Work platform length x width | 8000 x 1500 mm |
| Additional platform segment | 2000 x 1500 mm |
| Corner platform | 1000 x 800 mmm |
| Mast sections leght | 1,54 m |
| Mast sections weight | 70 kg |
| Distance between fixed points | 9 m |
| Mast height abowe last fixed point | 9 m |
| Lowest transport height | 2,0 m |
| Transport size length x width | 8100 x 1800 mm |
